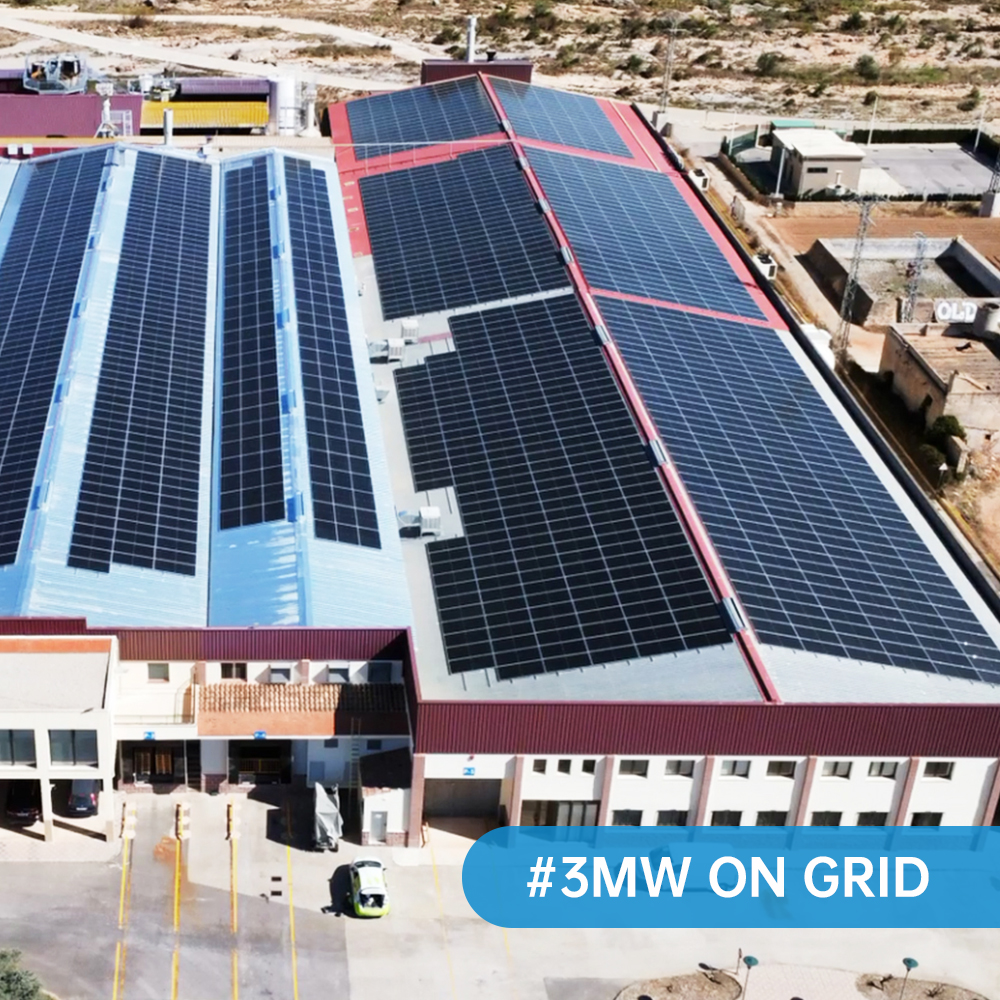

Higon 1MW 2MW 3MW Grid Tie Utility PV Solution Solar Farm
Higon 1MW 2MW 3MW Grid Tie Utility PV Solution Solar Farm
Higon 1MW 2MW 3MW Grid Tie Utility PV Solution Solar Farm
Higon 1MW 2MW 3MW Grid Tie Utility PV Solution Solar Farm
Higon 1MW 2MW 3MW Grid Tie Utility PV Solution Solar Farm
Higon 1MW 2MW 3MW Grid Tie Utility PV Solution Solar Farm
Higon 1MW 2MW 3MW Grid Tie Utility PV Solution Solar Farm

Higon 1MW 2MW 3MW Grid Tie Utility PV Solution Solar Farm

Higon usually provide design, drawing, analysis and all components supply for large scale solar project.

  • Model No. :

    GTS-3MW

  • Warranty :

    25 Years

  • Max. Power :

    3MW

  • Output Voltage :

    400V Single Phase 50Hz

  • Installation Application :

    Ground

  • Certification & Safety Standard :

    CE / TUV
Inquire Now



System Configuration



Model GTS-1MW GTS-2MW

GTS-3MW
Peak Power 1MW 2MW 3MW
Half Cut Mono 560W Solar Panel 1800 Pieces 3600 Pieces 5400 Pieces
PV Combiner Box 10 Pieces 20 Pieces 30 Pieces
On Grid Inverter MAX 100KTL3-X LV X 10 MAX 100KTL3-X LV X 20
MAX 100KTL3-X LV X 30
DC Cable 4mm2 16000 Meter 32000 Meter  50000 Meter
MC4 Connector 600 Pairs 1200 Pairs 2000 Pairs
Mounting System Ground Ground Ground


Commercial System Components





HIGON WHITE Mono 560W Solar Panel
HG560-72HC10
Peak Power Watts: 560Wp
Maximum Power Voltage: 43.22V
Maximum Power Current: 12.96A
Open Circuit Voltage: 50.68V
Short Circuit Current: 13.76A
Dimensions: 2278×1134×35mm
Weight: 27.8kg
Learn more about Higon Solar Module: https://www.higonsolar.com/solar-module



Grid-Tie Inverter

Upto 10 MPPTs, max. efficiency 99%.
Compatible with bifacial modules.
Remote firmware upgrade with simple operation. Overvoltage load reduction and leakage current suppression technology, low failure rate.
DC Combiner Box

DC Fuses, DC Breaker, DC SPD
IP Rating: IP66
Rated Voltage: 1000VDC
Connection Type: M20,M25,MC4
Rated Current: 16A,20A



Online Monitoring System

Open station supports one-click installation and registration Problem support one-click dispatch and navigation Safe operation, traceable logs, etc
Support full lifecycle data storage to ensure data security and reliability
DC Cable & MC4 Connector

Cross Section: 4mm2, 6mm2 Optional
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years
Find suitable accessories from here: https://www.higonsolar.com/accessories



PV Mounting System

Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 30,35mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional
Find suitable mounting system from here:https://www.higonsolar.com/mounting-system
